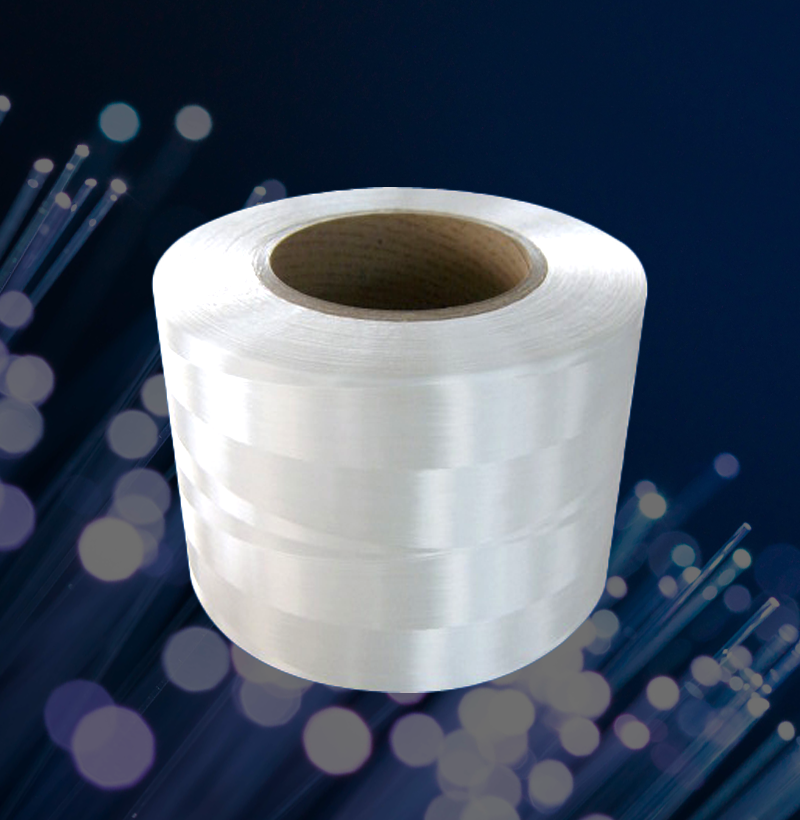

Polyester Binder Yarns

Mar 17, 2021 Technical Yarns
Polyester Binder Yarns
Polyester Binder Yarns

Our “binding” solution for your S-Z twisted optical fiber cables to fix the loose tubes before your jacketing operation. Our Binder Yarns are manufactured as flat yarns to prevent the surface of your loose tubes from being damaged during your binding process and they are suitable with a binder head speed up to 4000 RPM. Our most common grade is 1500 Deniers and we may also produce other grades as per your specifications. => monthly capacity 3 000kg



Polyester Binder Yarns Characteristics

ITEMUNITTEST METHOD1800D VALUE
AppearanceShall be GoodGood
Linear DensityDeniersASTM D 10591500 ± 5%
Tensile LoadKgfASTM D 2256Min. 8.0
Elongation at Break%ASTM D 2256Min. 15.0
Shrinkage%175’C*1 hourMax. 4.0

Spool Dimensions

UNITSIZE
O.Dmm240
I.D(1)mm145
TRAVERSEmm178
LENGTHmm183
LENGTH PER SPOOLkm29.5
WEIGHTkg5.0~5.1
TOLERANCE : ± 2.0 mm
