ARP

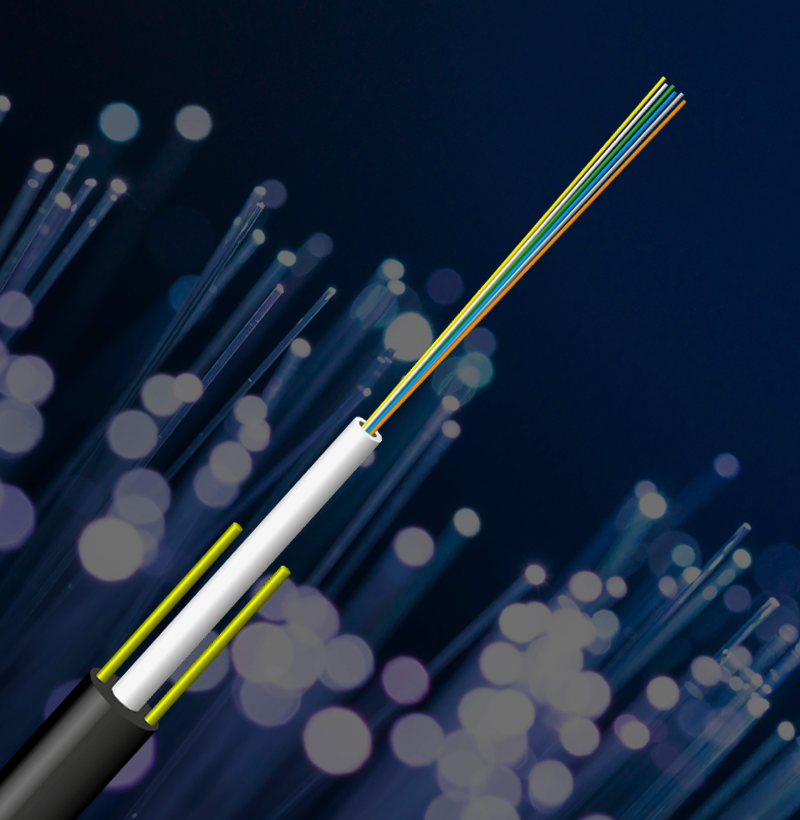

Our mixing “high strength and bending” solution with light weight and low expansion is notably fully suitable with your FTTH cables.  Our most common diameters are 0,50 & 1,00mm diameters  in two versions : uncoated and EAA coated. Our highest grade raw material to meet your highest standards. => monthly capacity 5 000km



ARP 0,5 mm (+ EAA coating) Characteristics

ITEMUNITSPECIFICATIONTEST METHOD
AppearanceShall be GoodGood
ARP Diameter Tolerancemm0.5 ± 0.03Micrometer
( EAA Coating Tolerancemm0.55 ± 0.02Micrometer )
Specific Gravityg/mm21.0 ~ 1.3ASTM D 792
Tensile StrengthKg/mm2Min. 200ASTM D 3916
Tensile ModulusKg/mm2Min. 5000ASTM D 3916
Elongation at Break%Min 3.5ASTM D 3916
Coef. of Thermal Expansion/℃Nom. 7*10-6
Minimum Bending Radiusmm25 X Dia

ARP 1,0 mm (+ EAA coating) Characteristics

ITEMUNITSPECIFICATIONTEST METHOD
AppearanceShall be GoodGood
ARP Diameter Tolerancemm1.0 ± 0.03Micrometer
( EAA Coating Tolerancemm1.1 ± 0.02Micrometer )
Specific Gravityg/mm21.0 ~ 1.3ASTM D 792
Tensile StrengthKg/mm2Min. 200ASTM D 3916
Tensile ModulusKg/mm2Min. 5000ASTM D 3916
Elongation at Break%Min 3.5ASTM D 3916
Coef. of Thermal Expansion/℃Nom. 7*10-6
Minimum Bending Radiusmm25 X Dia
