Flat GRP

Mar 17, 2021 FRP, GRP
Flat GPR

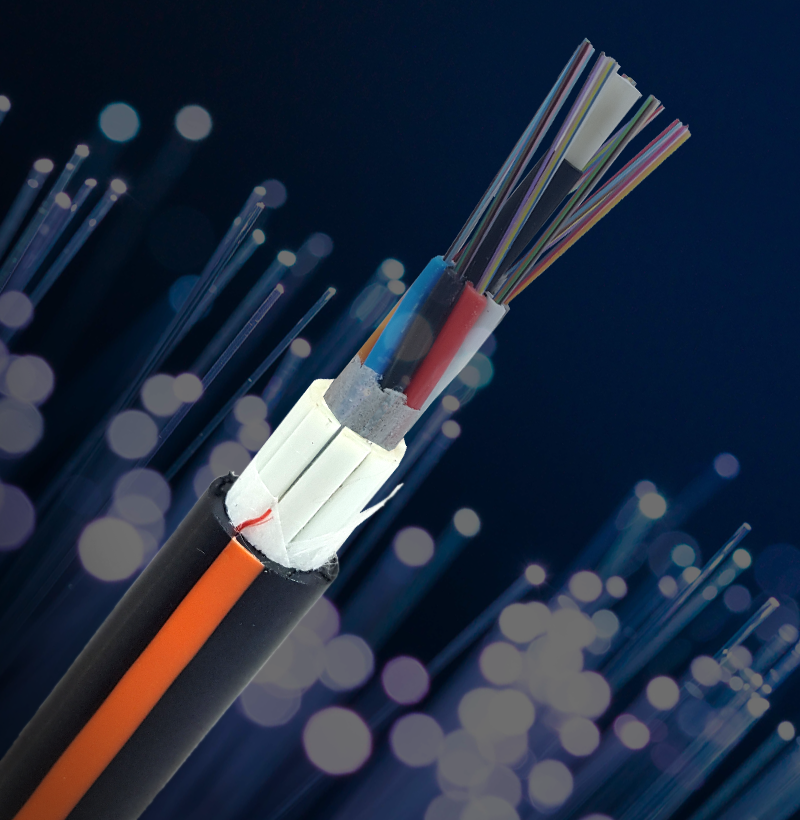

Our “armouring” GRP used for its lightweight, dielectric and resistant properties to protect your cables against rodents and bullets. Our most popular dimensions are 3,40*0,78 & 4,00*1,00mm and we may also manufacture dimensions in accordance with your needs. We are specialized in the specific rewinding of flat GRP with contiguous coils and we have rewinding equipments in our warehouse to package specific lengths on specific drums in accordance with your needs and machinery => monthly capacity 10 000km

Flat GRP Rod (3,40*0,78mm) Characteristics

ITEMUNITSPECIFICATIONTEST METHOD
AppearanceShall be GoodGood
Widthmm3,40 ± 0,05Micrometer
Thicknessmm0,78 ± 0,03Micrometer
Densityg/mm21.9 ~ 2.2ASTM D 792
Tensile StrengthKg/mm²Min. 130ASTM D 3916
Tensile ModulusKg/mm2Min. 5000ASTM D 3916
Elongation at Break%Min 2.5ASTM D 3916
Coef. of Thermal Expansion/℃Nom. 7*10-6ASTM D 696
Glass Content%Min. 80
Minimum Bending Radius at 20°C (5 days)25 X Thickness
Minimum Bending Radius at 100°C (5 days)50 X Thickness
Minimum Bending Radius at 80°C in water (5 days)50 X Thickness

Flat GRP Rod (4,00*1,00mm) Characteristics

ITEMUNITSPECIFICATIONTEST METHOD
AppearanceShall be GoodGood
Widthmm4,0 ± 0,05Micrometer
Thicknessmm1,0 ± 0,05Micrometer
Densityg/mm21.9 ~ 2.2ASTM D 792
Tensile StrengthKg/mm²Min. 130ASTM D 3916
Tensile ModulusKg/mm2Min. 5000ASTM D 3916
Elongation at Break%Min 2.5ASTM D 3916
Coef. of Thermal Expansion/℃Nom. 7*10-6ASTM D 696
Glass Content%Min. 80
Minimum Bending Radius at 20°C (5 days)25 X Thickness
Minimum Bending Radius at 100°C (5 days)50 X Thickness
Minimum Bending Radius at 80°C in water (5 days)50 X Thickness
